NEW Sonic Custom 210AH Custom Yinglong LTO bank
Sonic Kustomz
$3,860.00
π₯ Sonic Kustomz 210AH Yinglong Custom LTO Battery Bank π₯
Unleash serious power with the Sonic Kustomz 210AH Custom Yinglong Bank — designed by bassheads, for bassheads. Whether you're chasing SPL trophies or just want relentless voltage stability for your daily demo monster, this lithium titanate (LTO) bank delivers raw, reliable energy every time you crank it.
NOTE: These banks are made to order, allow 5-7 days from order to dispatch.
Customization can also be done in shape, logo on enclosure and enclosure color.

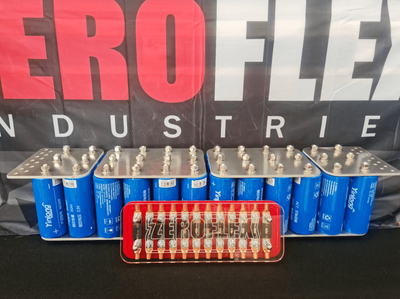

LTO - Details Yinlong LTO 66160 14.4V 210Ah complete set
A complete triple LTO set in a finished multiplex housing, wired and screwed for 12v + systems. Ready for installation with matching end plates with M8 screw connections for easy connection of plus and minus. The voltage range of 12 - 16v should not be under or exceeded, by monitoring the installed balancer, this bank can be easily charged with any alternator from at least 14v to 16v, the 210Ah package is designed for power ranges 24000 watts up to 50000 watts depending on alternator specs.
Technical data of the single cell:
Dimensions
66mmx160mm (66mmx202mm)
Type
Lithium titanium oxide
weight
~ 1,25kg
Rated voltage
2,3V
battery capacity
35Ah
Battery life
16.000+ cycles
Charging and discharging current standard
1C (35A)
Charging and discharging current max. constant
6C (210A)
Charging and discharging current max. 10 sec.
10C (350A)
Operating temperature
-55Β°C - 65Β°C
As a guideline:
β 1 string, consisting of 6 cells, connectors and BMS (balancer) is sufficient for a supply of just under 4000 watts.
β Final charging voltage per cell : 2.5V - 2.65V (manufacturer's specification 2.8V)
β Final discharge voltage per cell: 1.8V - 2.0V (manufacturer's specification 1.5V)
β Trickle charge per cell: not recommended, can be set to 2.25V/cell for solar charge controllers
β The difference between our specification and the manufacturer's specification results in a capacity difference of <0.5Ah, if you want to protect the cells, please use our specifications and not the maximum values.
Attention!!! Work on electrical systems should only be carried out by qualified persons in compliance with the applicable regulations!Please observe the safety instructions in the appendix!Always use suitable overvoltage and undervoltage protection and a balancer when operating lithium cells
Possible applications:
β Solar storage (extremely durable and safe)
β Camper and caravan (temperature insensitive)
β Starter battery (very high currents possible)
β Boat battery
β UPS
Tests carried out:
β Cut test = NO FIRE
β Electrical piercing test = NO FIRE
β Immersion penetration test = NO FIRE
β Drop test = NO FIRE
β High temperature test = NO FIRE
β Gasoline combustion test = NO FIRE
